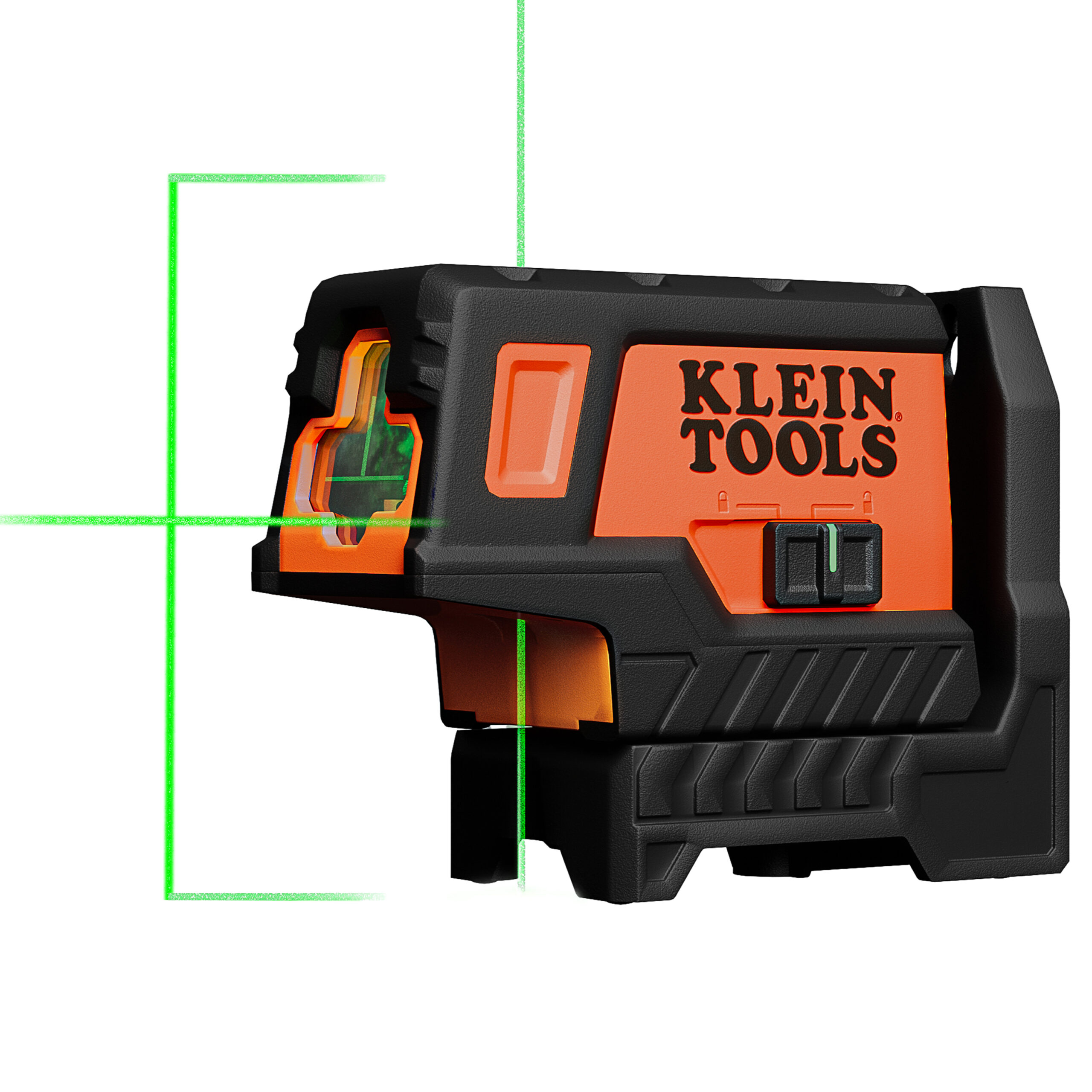

Klein Tools 93MCLPG Compact Green Cross-Line Laser with Plumb Spot
The Klein Tools 93MCLPG is a compact self-leveling green cross-line laser with plumb spot, 75 ft indoor range, ±3/16 in. accuracy at 33 ft, magnetic and tripod mounting, IP54 protection and more than 6 hours of battery life.
Key Product Details
- Application
- Cabinetry, Floor Layout, General Construction, Wall Alignment
- Laser Type
- Cross-Line + Plumb Spot
- Beam Color
- Green
- Power Source
- AA Batteries
- Detector Compatible
- No
- Connectivity
- None
- IP Rating
- IP54
Klein Tools 93MCLPG Overview
The Klein Tools 93MCLPG is a compact green cross-line laser with plumb functionality for installers who do not need three full 360° planes. It projects horizontal and vertical cross lines plus plumb references, making it useful for straightforward floor layout, wall alignment, track positioning, cabinetry and general installation work.
Cross-Line and Plumb Reference
The tool provides highly visible green horizontal and vertical lines together with plumb functionality. A cut-out in the base allows the laser to sit directly over common framing members such as 2×4s or metal track, which can simplify positioning when a tripod is not convenient.
75 ft Indoor Range
Klein rates the indoor working range at 75 ft with accuracy of ±3/16 in. per 33 ft. That is well matched to rooms, apartments and typical interior fit-out areas, but it is not intended to replace a receiver-compatible 360° laser on very large jobs.
Simple AA Power
The laser uses three AA batteries and provides more than six hours of battery life. For teams that prefer replaceable batteries rather than waiting for a built-in pack to charge, this is a simple and predictable power setup.
Compact Mounting Options
Rare-earth magnets, a 1/4-20 tripod thread and a hang hole provide several ways to position the tool. The housing is IP54 rated and has 1 m drop protection, which is useful for a small laser that may be carried around active installation areas.
Best Use Case
The 93MCLPG is a practical choice for installers who mainly need cross-line and plumb references rather than full 360° room coverage. It is especially useful as a compact secondary laser or for smaller flooring and interior alignment jobs.
Pros & Cons
Pros
- Bright green cross lines and plumb reference
- 75 ft indoor range
- ±3/16 in. accuracy at 33 ft
- Compact lightweight design
- Base cut-out for direct positioning
- Rare-earth magnetic mounting
- 1/4-20 tripod thread
- IP54 water and dust resistance
- 1 m drop protection
- 6+ hour battery life
Cons
- No 360° planes
- No receiver support
- AA battery power rather than rechargeable pack
- Shorter range than professional 3-plane systems
Technical Specifications
| Laser Type | Self-leveling cross-line with plumb spot |
|---|---|
| Laser Color | Green |
| Indoor Range | 75 ft |
| Accuracy | ±3/16 in. at 33 ft |
| Number of Beams | 4 (2 plumb and 2 crosslines) |
| Power Source | 3x AA alkaline |
| Battery Life | 6+ hours |
| IP Rating | IP54 |
| Drop Protection | 3.3 ft / 1 m |
| Mounting | Magnets, 1/4-20 tripod thread, hang hole |
| Laser Class | Class 2 |
| Weight | 0.63 lb |
Who Is This Product For?
Smaller flooring jobs, wall and track alignment, cabinetry and installers who want a compact plumb-capable laser.
Full-room 360° layout, long-distance detector work or users who need three simultaneous laser planes.
Editorial Verdict
A compact, straightforward green cross-line and plumb laser for room-scale installation work where portability and simple positioning matter more than 360° coverage.
