DEWALT DW089LG 12V MAX 3×360 Green Line Laser
The DEWALT DW089LG is a proven 12V MAX three-plane 360° green line laser with a 100 ft visible range, detector compatibility, IP65 protection and a rechargeable battery-platform design.
Key Product Details
- Application
- Cabinetry, Floor Layout, Framing, General Construction, Tile Installation, Wall Alignment
- Laser Type
- 3-Plane 360°
- Beam Color
- Green
- Power Source
- 12V Battery
- Detector Compatible
- Yes
- Connectivity
- None
- IP Rating
- IP65
DEWALT DW089LG Overview
The DEWALT DW089LG is a professional 12V MAX green laser that projects three 360° planes for complete horizontal and vertical layout. The format is well suited to flooring installation, tile work, framing, cabinetry and room-wide squaring where several reference planes are needed simultaneously.
Three 360° Green Planes
One horizontal and two vertical 360° lines let users establish level, plumb and square references from a single setup. The green beam improves indoor visibility, while pulse mode allows the laser to work with a compatible detector when greater range is required.
Professional Range and Accuracy
The DW089LG is commonly specified with approximately ±1/8 in. accuracy at 33 ft, around 100 ft of visible working range and extended detector-assisted reach. That makes it suitable for larger professional layout jobs rather than only short indoor alignment tasks.
12V MAX Power and IP65 Protection
The tool runs on DEWALT’s 12V MAX rechargeable battery platform and is built around a rugged IP65-rated housing. Integrated mounting provisions and the supplied kit accessories support repeated jobsite setup and transport.
Who Is the DW089LG Best For?
This model is best for professionals who prefer DEWALT’s battery ecosystem and want a durable, established three-plane 360° laser with receiver capability.
Pros & Cons
Pros
- Three 360° green planes
- Around 100 ft visible range
- Detector compatible
- 12V MAX rechargeable battery platform
- IP65 protection
- Magnetic mounting capability
- 1/4 and 5/8 mounting threads

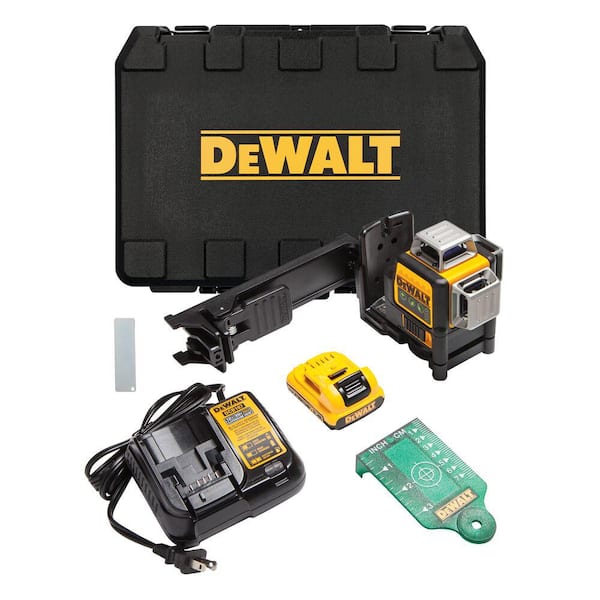

- Hard case kit
Cons
- Larger and heavier than compact lasers
- Requires DEWALT 12V battery system
- Older platform than newer fine-adjust and USB-C models
Technical Specifications
| Laser Type | 3-plane 360° self-leveling |
|---|---|
| Laser Color | Green |
| Visible Range | About 100 ft |
| Accuracy | ±1/8 in. at 33 ft |
| Detector Compatible | Yes |
| Power Source | DEWALT 12V MAX battery |
| IP Rating | IP65 |
| Mount Thread | 1/4-20 and 5/8-11 |
| Laser Class | Class 2 |
Who Is This Product For?
Professional installers and contractors already using DEWALT 12V tools who need robust three-plane layout and detector capability.
Users prioritizing the smallest possible laser or USB-C charging without a removable power-tool battery.
Editorial Verdict
A durable and proven 3×360 professional laser for DEWALT users who value full-room layout, receiver compatibility and IP65 jobsite protection.
