Bosch GLL330-80CGL 18V Connected 360° Green Laser Level
The Bosch GLL330-80CGL is a professional 18V three-plane 360° green laser level with Bluetooth control, an integrated fine-adjust magnetic mount, IP65 jobsite protection and up to 400 ft range when used with a compatible receiver.
Key Product Details
- Application
- Cabinetry, Floor Layout, Framing, Tile Installation, Wall Alignment
- Laser Type
- 3-Plane 360°
- Beam Color
- Green
- Power Source
- 18V Battery, C-Cell Alkaline
- Detector Compatible
- Yes
- Connectivity
- Bluetooth
- IP Rating
- IP65
Bosch GLL330-80CGL Overview

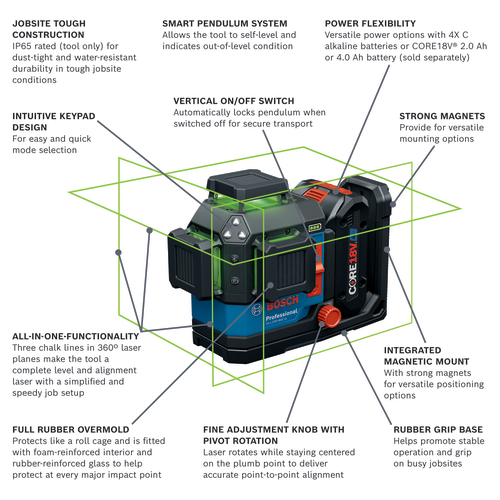

The Bosch GLL330-80CGL is a premium three-plane 360° green-beam laser built for full-room layout, leveling and alignment work. One horizontal and two vertical 360° planes make it useful for flooring layout, tile reference lines, wall alignment, cabinetry, framing and other installation tasks where several reference planes are needed at the same time.
Three 360° Planes for Layout Work
The laser projects one horizontal and two vertical 360° green lines, allowing installers to establish level, plumb and square reference lines from a single setup. For flooring work, the two vertical planes are particularly useful when checking room squareness, extending layout lines across a large area or aligning transitions and architectural features.
Long Range and Professional Accuracy
Bosch specifies a visible working range of up to 115 ft without a receiver and up to 400 ft with a compatible receiver. The bright thin lines are rated to level within 1/8 in. at 30 ft, making the tool appropriate for precise professional layout rather than basic household leveling.
Bluetooth and Fine Adjustment
Bluetooth connectivity works with the Bosch Leveling Remote App, allowing settings to be controlled from across the room. The integrated magnetic mount includes a fine-adjustment pivot, which is useful when the vertical plane needs to be moved precisely onto a reference point without repositioning the entire laser.
Power Flexibility and Jobsite Durability
The kit uses an included CORE18V 4 Ah battery and can also operate with four C-cell alkaline batteries using the supplied adapter. The tool is IP65 rated for dust-tight and water-resistant protection, while the rubber-overmolded housing is designed for demanding jobsite use.
Best Use Case
This model makes the most sense for professional installers and contractors who need long-range three-plane coverage, receiver compatibility and remote control. It is more tool than most occasional DIY users need, but its combination of range, durability and fine positioning is well suited to repeated commercial layout work.
Pros & Cons
Pros
- Three 360° green laser planes
- 115 ft visible range
- Up to 400 ft with receiver
- 1/8 in. accuracy at 30 ft
- Bluetooth remote control
- Integrated fine-adjust magnetic mount
- 18V or C-cell power flexibility
- IP65 dust and water resistance
- Receiver compatible
Cons
- Large and relatively heavy compared with compact lasers
- Premium professional price
- Receiver required for maximum range
Technical Specifications
| Laser Type | 3-plane 360° self-leveling |
|---|---|
| Laser Color | Green |
| Visible Range | 115 ft |
| Range with Receiver | 400 ft |
| Accuracy | ±1/8 in. at 30 ft |
| Self-Leveling Range | Up to ±4° |
| Connectivity | Bluetooth |
| IP Rating | IP65 |
| Power Source | CORE18V 4 Ah or 4x C-cell alkaline |
| Mount Thread | 1/4-20 and 5/8-11 |
| Laser Class | Class 2 |
| Weight | 10.8 lb |
Who Is This Product For?
Professional flooring installers, tile setters and contractors who need full-room 360° layout, long receiver range and precise fine adjustment.
Occasional DIY users or small indoor jobs where a compact cross-line laser would be sufficient.
Editorial Verdict
A premium three-plane 360° laser for professional flooring and construction layout, combining long receiver range, Bluetooth control, fine adjustment and rugged IP65 protection.
