Protimeter SurveyMaster BLD5375 Dual-Function Moisture Meter

Protimeter SurveyMaster BLD5375 Overview

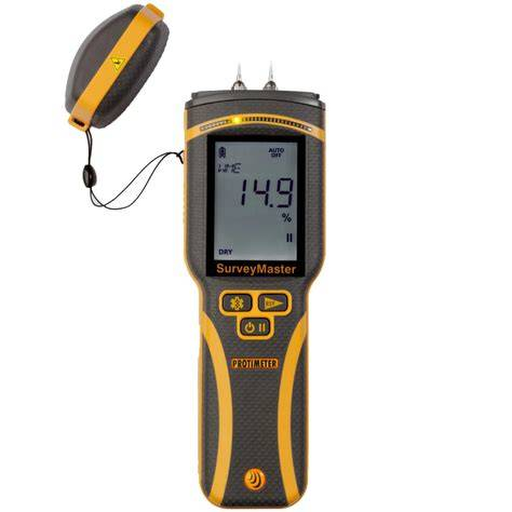

The Protimeter SurveyMaster BLD5375 is a professional dual-function moisture meter for building inspection, restoration and flooring-related moisture assessment. It combines direct pin measurement with a non-invasive scanning mode, allowing an inspector to move from rapid surface screening to more targeted contact measurements without changing instruments.

The current BLD5375 model also adds Bluetooth connectivity, a larger display, automatic calibration checks and field calibration for the non-invasive mode. These features make it more suitable for repeatable professional survey work than a basic consumer moisture detector.

Dual-Function Pin and Non-Invasive Measurement

The SurveyMaster is designed to work with wood, drywall, concrete and a broad range of building materials. The non-invasive mode is useful for quickly assessing larger areas and identifying changes in moisture response without puncturing the surface.

When direct measurements are needed, the pin function can be used on appropriate materials. Having both methods in the same meter allows the user to choose the least invasive approach first and move to direct contact measurements only where they add useful information.

Building Survey and Flooring Applications

Protimeter lists building surveys, fire and flood construction, and concrete and wood floor moisture measurement among the SurveyMaster’s intended applications. That makes it relevant to flooring professionals who need to investigate both the finished floor area and surrounding building conditions.

For restoration teams, the ability to scan quickly and then focus on suspect locations can help organize a moisture survey after water intrusion. For inspectors, the meter can be used to compare multiple materials across the same property without relying on a single sensor method.

Bluetooth Data Recording with Protimeter Connect

Bluetooth connectivity allows the SurveyMaster to work with the Protimeter Connect app. Readings can be saved with time and date information, which is useful when moisture measurements need to be documented rather than simply checked on the spot.

This is an important distinction from simpler moisture meters. For professional inspection work, the ability to associate measurements with a job record can make follow-up visits and reporting easier.

Calibration and Field Adjustments

The BLD5375 includes an in-built WME calibration check and a periodic automatic calibration check. Protimeter states that the newer model performs an automatic calibration check every 50 power cycles.

The non-invasive mode can also be field calibrated by the user. Adjustable settings include auto shutoff, backlight, buzzer and dry/at-risk/wet indicators, while over-the-air firmware updates support the meter’s longer-term use as part of a professional toolkit.

Designed for Repeated Professional Use

The interface is intended for one-handed operation and the current model uses a larger display than the previous generation. Users can enable or disable several feedback options depending on how they prefer to work in the field.

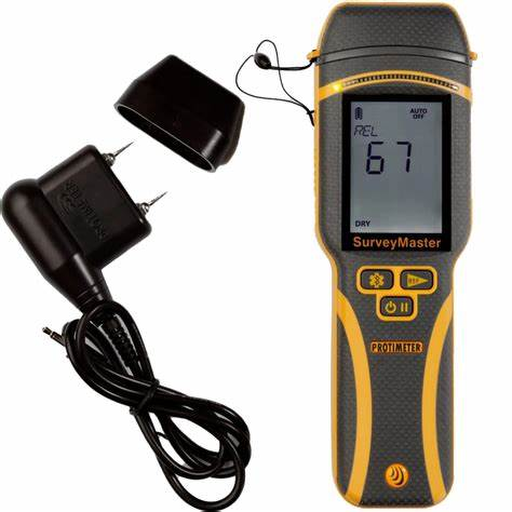

Protimeter also provides a range of optional probes for deeper or specialized measurements, which gives the SurveyMaster room to expand beyond the standard handheld configuration.

A Professional Moisture Meter for Mixed-Material Surveys

The SurveyMaster BLD5375 makes the most sense when moisture inspection is part of regular professional work rather than an occasional DIY task. Its dual measurement methods, broad material support and Bluetooth documentation tools are aimed at users who need flexibility and repeatable records.

For a simple spot check it may be more instrument than necessary, but for building surveys, restoration and floor-related moisture investigation it offers a much broader workflow than a basic single-mode meter.
